Product Name:EPEU307 & EPET306 Grades (EPE)
Product Explanation:

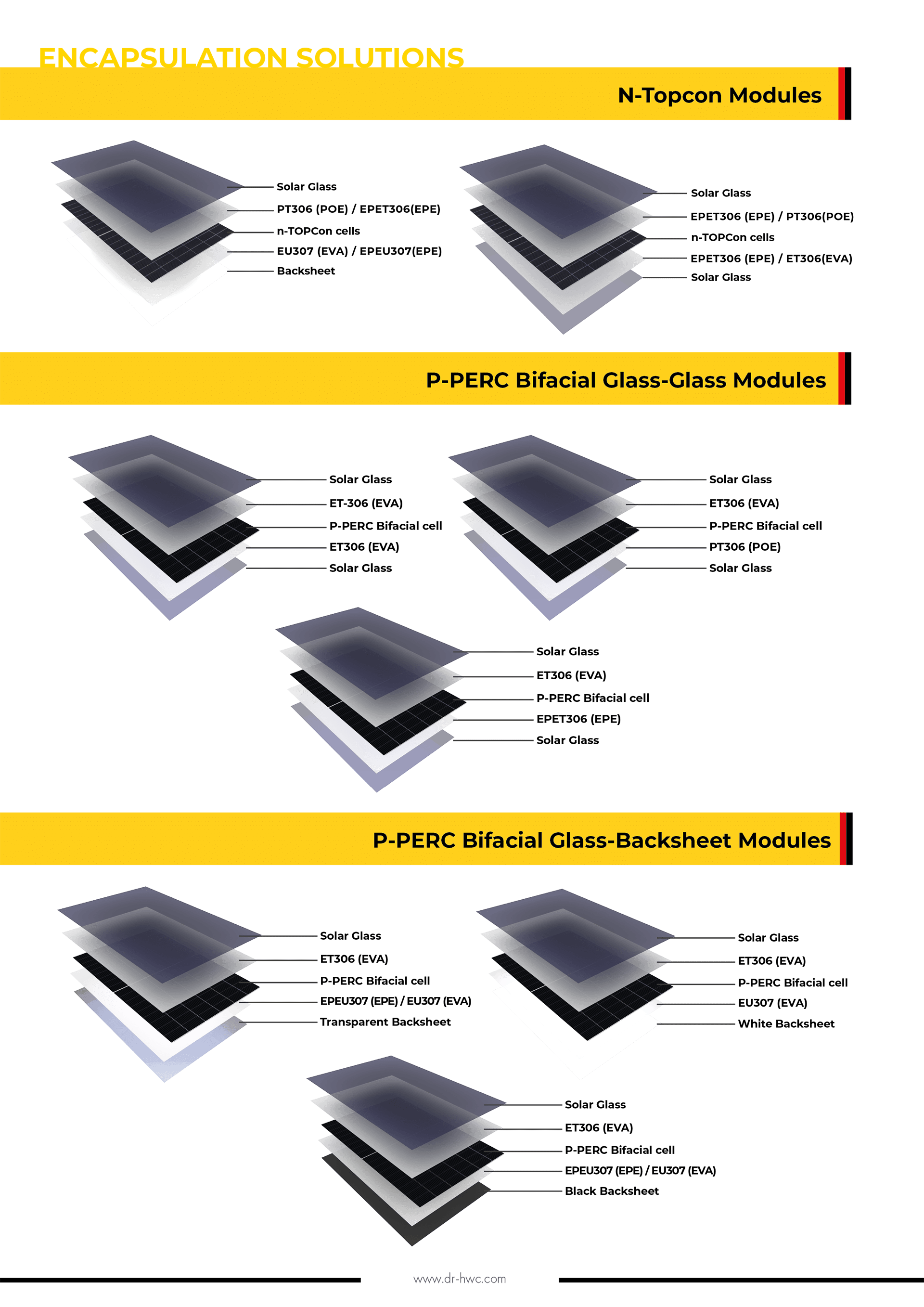

EPE (EVA-POE-EVA) FILM
For Encapsulating Solar PV Panels
Exellent Anti PID Performance
High Insulation
Outstanding Adhesion
Excellent UV Protection
Better Cross-linking Speed
Excellent Weatherability and Long Term Reliability
Technical Specification (Dr. HWC-EPEU307 - EPET306 Grades)
| Properties | Unit | Test Method | Value | |
|---|---|---|---|---|
| EPEU307 | EPET306 | |||
| Total Thickness ( Tolerance: ±0,05%) | mm | DR. HWC method | 0.40 ~ 0.90 | |
| Total Width | mm | Scale | Up to 1300 | |
| Thermal Shrinkage (MD) | % | On solar glass (3 min, 125 ºC) | ≤ 3 | ≤ 3 |
| Thermal Shrinkage (TD) | % | On solar glass (3 min, 125 ºC) | ≤ 1 | ≤ 1 |
| Water Vapor Transmission | g/㎡ /24h | ASTM F1249 | ≤ 5 | ≤ 5 |
| UV Resistance (300kWh/㎡) | ΔYI | ASTM G154 | ≤ 4 | ≤ 4 |
| Humidity and Heat Resistance | ΔYI | ASTM E313 | ≤ 4 | ≤ 4 |
| Degree of Cross-linking (Gel Content) | % | Soxhlet Method Lamination (14 min,145 ºC) | ≥ 75 | ≥ 75 |
| Adhesion to Glass (With Backsheet) | N/㎝ | ASTM D 903 | ≥ 80 | ≥ 80 |
| Adhesion to Backsheet | N/㎝ | ASTM D 903 | ≥ 80 | ≥ 80 |
| Ultimate Elongation (Cured) | % | ASTM D 638 | ≥ 600 | ≥ 600 |
| Tensile Strength (Cured) | MPa | ASTM D 638 | ≥ 10 | ≥ 10 |
| Optical Transmittance (380nm-1100nm) | % | ASTM D1003 | ≥ 91 | ≥ 91 |
| UV Cut-off Wave Length | nm | DR.HWC method | 340-360 | UV transparent |
| CTI (Comparative Tracking Index) | Volt | IEC 60112 | ≥ 600 | ≥ 600 |
| Component Power Loss | % | IEC G2804 | ≤ 5 | ≤ 5 |
| Dielectric Strength | kV/mm | ASTM D149 | ≥ 25 | ≥ 25 |
| Volume Resistivity (Cured) | Ω*cm | ASTM D 257 | ≥1*1015 | ≥1*1015 |
| Refractive Index | - | ISO 489 | 1.48 | 1.48 |
| Lamination Recipe | ||||
|---|---|---|---|---|
| Lamination Parameters | Unit | First Chamber | Second Chamber | |
| Temperature | ºC | 120 - 130 | 145 - 150 | |
| Vaccum Time | min | 4 - 6 | 4 - 6 | |
| Lamination Time | min | 8 - 12 | 8 - 12 | |
| Pressure | kPa | -70 | -50 |-25 | -70 | -50 |-25 | |
Note 1: In the actual lamination process, the crosslinking degree reaches the design value and the component yield is high as a guide, which is adjusted according to the actual working condition onsite.
Note 2: It is recommended to use it up within 48 hours after opening of the original packing.
Note 3: These are typical laboratory values that may change depending on the cure conditions as well as the test conditions and methods.
